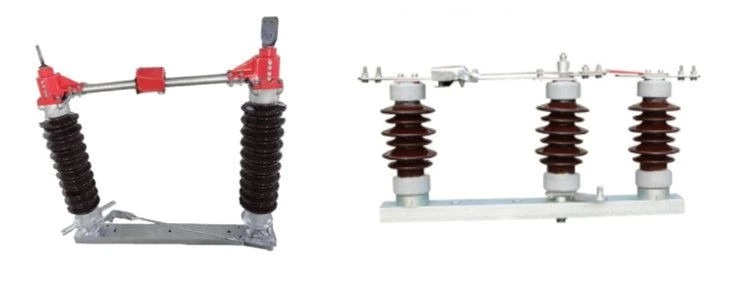

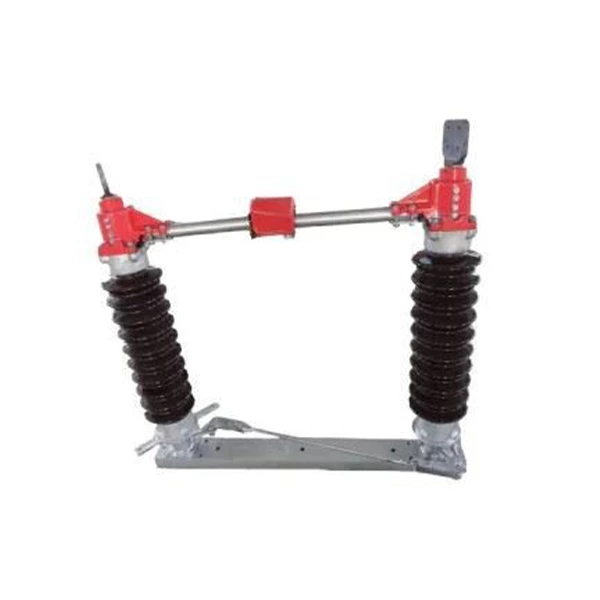

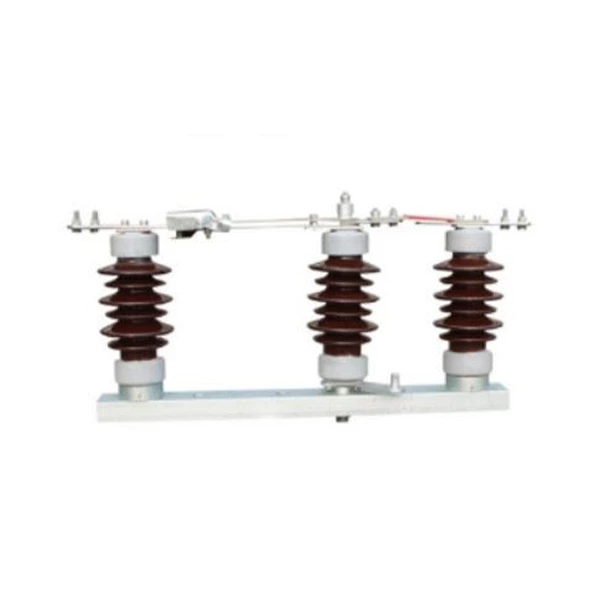

40.5KV Isolation Switch

40.5KV isolation switch is one of GW4 Series Outdoor high-voltage isolation switch is a three-phase AC 50Hz outdoor high-voltage electrical appliances, power system 40.5KV rated voltage

40.5KV Isolation Switch

40.5KV isolation switch is one of GW4 Series Outdoor high-voltage isolation switch is a three-phase AC 50Hz outdoor high-voltage electrical appliances, power system 40.5KV rated voltage, the high-voltage supply line and no load is transferred to the subject of the high-voltage bus, circuit breakers and other electrical equipment and charged high pressure the electrical circuit isolation.

GW4-40.5,GW4-40.5D Isolating switch unipolar type, with three unipolar link together into a three-pole arm conductive, isolating switch linkage, the linkage rod by the left and right-handed spirals, easy to adjust the three-phase synchronous also be a single pole use.

GW4-40.5 Series isolation switch from the base, post insulator and conductive parts, each pole has two cylinders are mounted on the base ends of the bearing housing, with cross-connecting rod can be rotated horizontally. Knife made conductive by the brass, the contact point is in the middle of two columns, porcelain knife are fixed on top of the pillars.

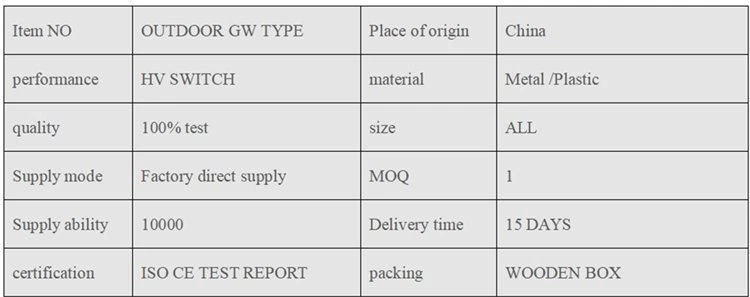

Product Specifications:

40.5KV Isolation Switch

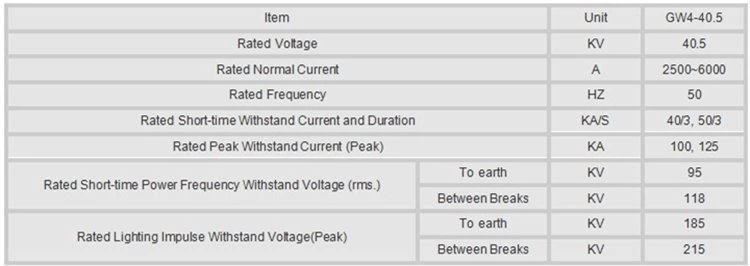

Main Technical Parameter:

40.5KV Isolation Switch

Our Advantage:

1. We have been engaged in fuse for more than 15 years.

2. We have experienced engineers and professional QC to ensure your product better.

3. Our company with strong strength, reasonable price, good service and a number of enterprises to establish a long-term partnership.



FAQ:

Q: How your quality guarantee?

A:We have 100% quality guarantee to customers. We will be responsible for any quality problem.

Q: How many different types of products your company manufactures?

A: Now we have more than 100 products. We have a strong advantage of OEM, just give us the actual products or your idea that you want, we will manufacture for you.
