Fuse

LV HRC fuse is suitable for AC 50Hz , rated voltageto 500V, rated current to 1600A. lt is mainly used in the electric installation for protecting circuit from overload and short circuit(gG/GL);

1. We have been engaged in fuse for more than 15 years.
2. We have experienced engineers and professional QC to ensure your product better.

1) Single pole fuse cutout is used with BS88 cylindrical fuse links

2) Rated voltage: 415V AC

3) Current rating: 60A, 80A, 100A

4) Complies with the IEC60269 Standards

Low power loss NH(NT) fuses & lv hrc fuse holder for industrial protection, conform to Class GL/GG and Class aM,gR,aR. General industrial applications or for the protection of motor circuits.

This series of cylindrical fuse is suitable for AC 50Hz, rated voltage to 500V, rated current to 125A. It is mainly used for protecting the electrical circuit against overload and short-circuits(gG/gL).

TYPE HR17-160A HR17-250A HR17-400A HR17-630A Ui 690V 690V 690V 690V Ue AC400,660V Ie 400V AC 160A 250A 400A 630A 660V AC 100A 200A 315A 425A Rated limit short circuit current 50KA Matched fuse link NT

High breaking capacity NH fuse links

NT fuse is a kind of low voltage fuse, which plays a role of short circuit protection in the circuit.The fuse is composed of melt, fuse wire and fuse base (the base on which the fuse is installed). The melt of the fuse has the shape of filament, sheet and grid. The materials are lead, tin alloy,...

The NT fuse base uses the metal conductor as the melt in series in the circuit. When the overload or short circuit current passes through the melt, the fuse will be broken due to its own heating, thus breaking the circuit.Fuses are simple in structure and easy to use. They are widely used as...

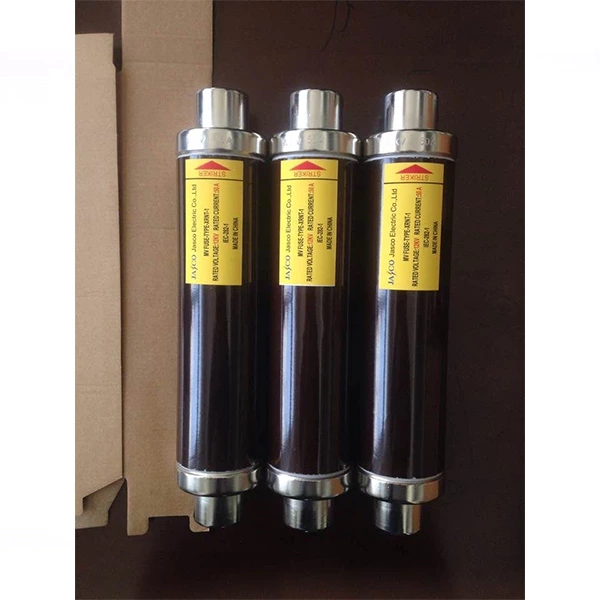

Product Description Product name: current limited fuse current limited fuse is a kind of high voltage fuse.Current limited fuses are divided into resistance current limited and arc reactance conversion current limited .Resistance current limited restricts the current value of a circuit below a...

Traditional semiconductor fuse is designed specifically for supplementary protection of semiconducting devices such as silicon controlled rectifiers (SCR's), diodes, thyristors, triacs, transistors, and similar solid-state devices.

JASCO brand 415V fuse handle comply with UK Electricity Supply Industry Standards BS88. It can be wedged JPU 82mm fuse link to be useful for fusible cutout.

HR17 fuse type isolating switch is of state of the art in the middle 1990s in the world. Its rated frequency is 50Hz, rated in isolation voltage up to 660V, and rated working current up to 630A.

Fuse switch disconnector of this design is a 3 pole, 400A, Guanged Operated for protection and isolation of service insulated cables, disconnector of a network section, connection of network section, protection pf service feeders from transformers of change of conductor cross section.

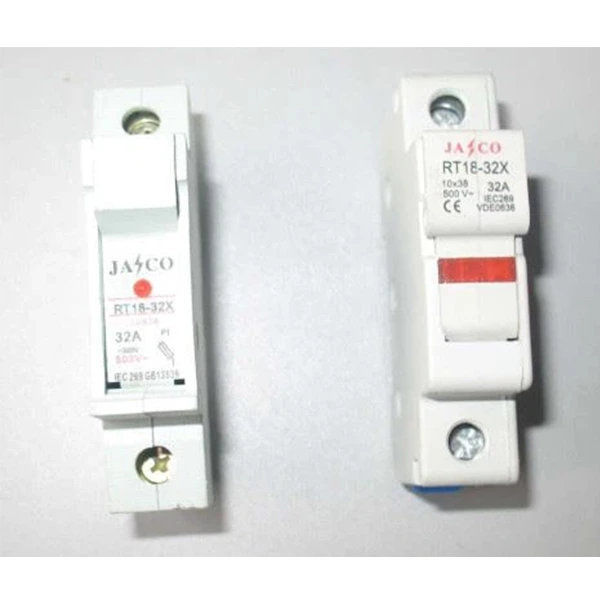

The cylindrical fuse consists of fuse link and round fuse holder. The variable cross-section fuse body made by pure copper piece (or copper wire, silver wire, silver piece) is sealed in the fusion tube which is made by the high strength porcelain or epoxy glass cloth pipe, there is full of the high-purity quartz sand processed after chemistry to take the extinguishing of arc medium in the tube.

DII DIII 500V AC 50kA Low voltage screw type D type ceramic fuse link is designed for the protection of general industrial applications such as power distribution and cable protection.

These offset tag fuse are used in industrial installations and can be fitted into BS88 bolted fuse-holders and distribution fusegear.

5 amp glass tube fuse is a low-resistance device that ACTS as a sacrificial device and provides load or source current passing protection.

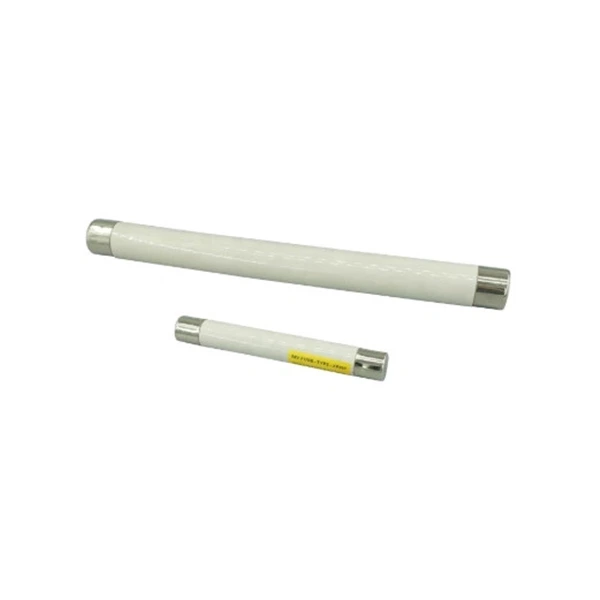

The XRNT Fuses can be used inindoor system of 50HZ and rated voltage of 3.6KV, 7.2KV, 12KV, 24KV, 40.5KV: Used together with other switch facilities such as loading swithes, vacuum contactors, it can protect electric transformers and other electric facilities against overloading or circuit break.

1. We have been engaged in fuse for more than 15 years.
2. We have experienced engineers and professional QC to ensure your product better.

This fusible link fuse is suitable for AC 50Hz, rated voltage to 1140V, rated current to 1250A. lt is mainly used in the electric installation for protecting ircuit from overload and short circuit(gG/GL);

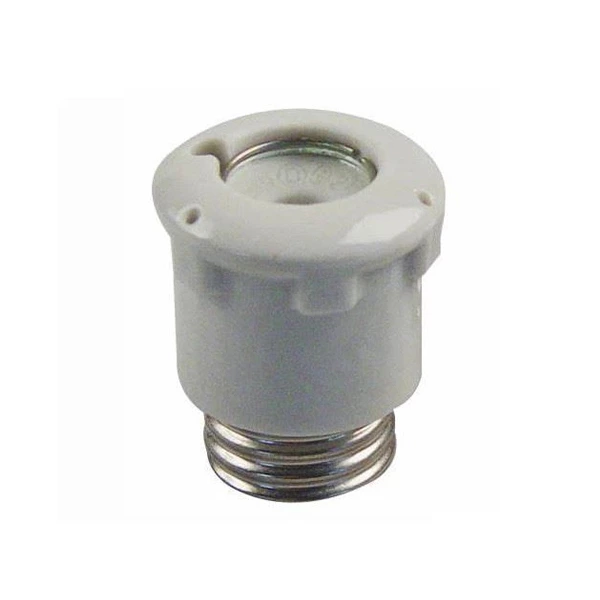

This series of fuse bases are made up of fuse holder cap and fuse carrier. Insert the fuse holder cap into the carrier, which will be screwed into the supporter to form a complete screw fuse unit.
