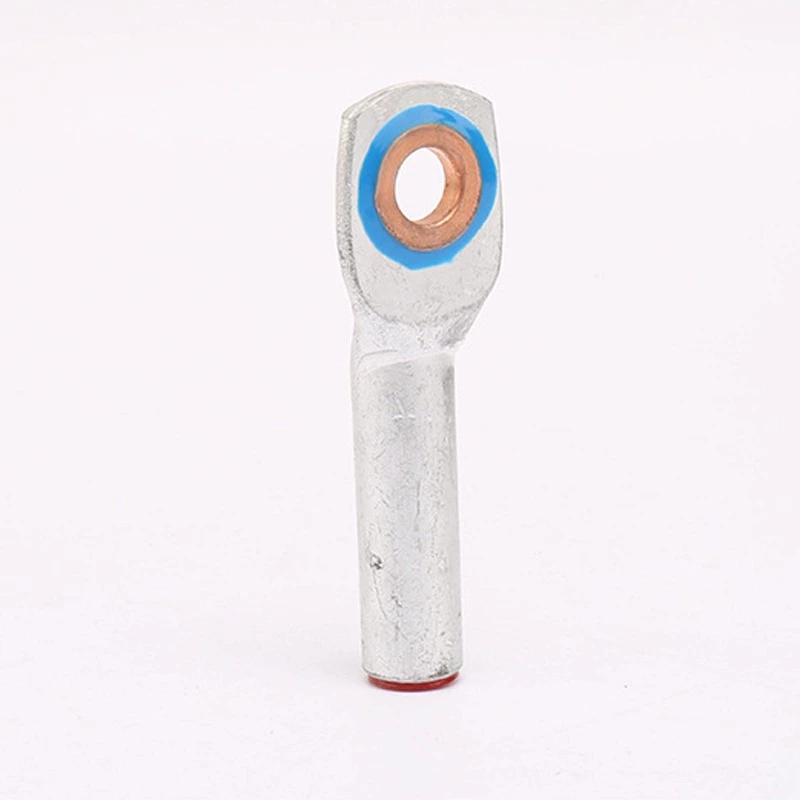

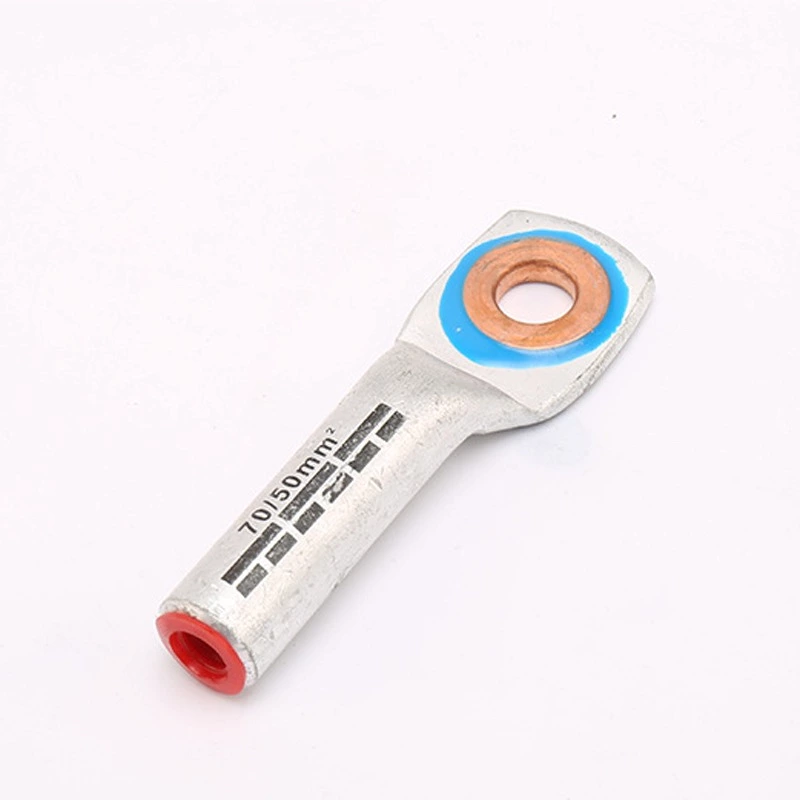

DTL-3 Bimetallic Cable Connected Lug
With CU eye in screw-on and markings for correct crimping.

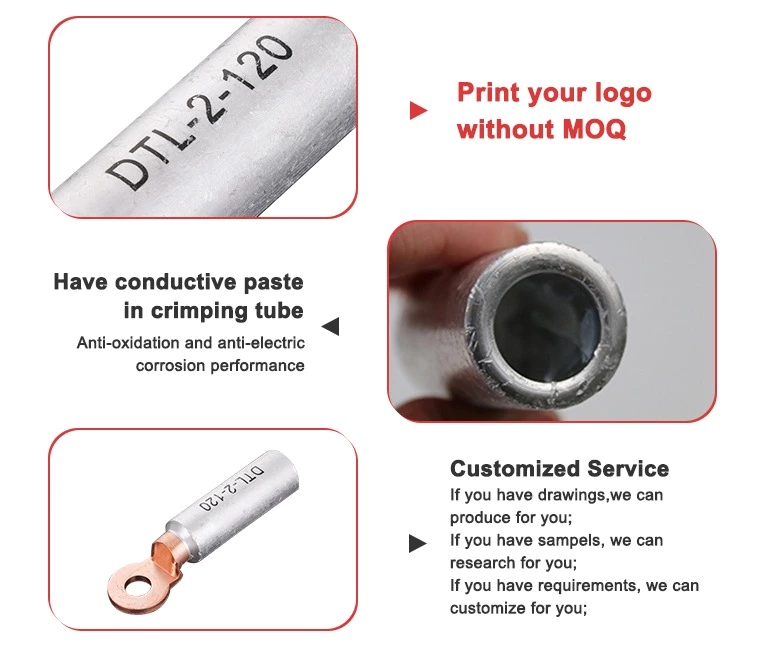

Aluminium barrel is filled by neutral grease and covered by cap.
Material: CU≥99.9%, AL≥99.5%.

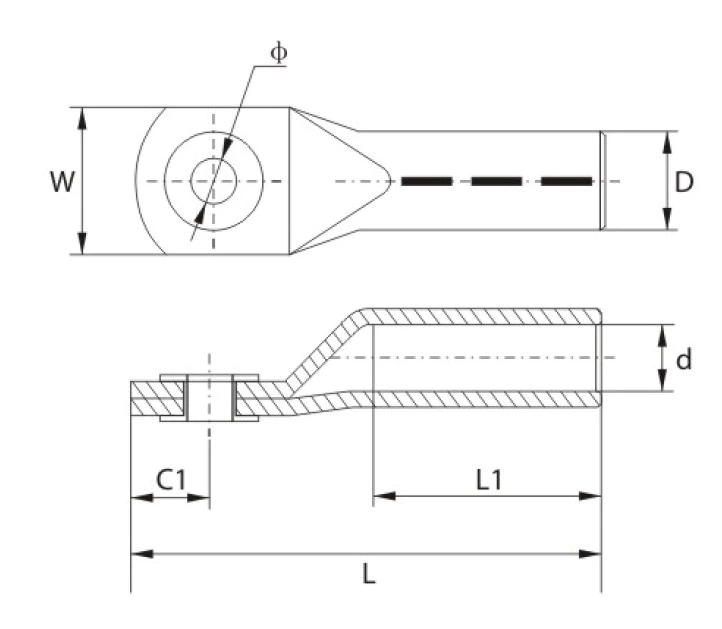

| Item No. | D±0.2 | d±0.2 | φ±0.3 | C1±1 | L±2 | W±0.2 |
| DTL-3-35 | 14 | 8.5 | 10.5 | 14.9 | 82 | 25 |
| DTL-3-50 | 16 | 10.0 | 10.5 | 14.5 | 87 | 37 |
| DTL-3-70 | 18 | 11.5 | 13.0 | 17.2 | 102 | 32 |
| DTL-3-95 | 21 | 13.5 | 13.0 | 19.6 | 106 | 35 |
| DTL-3-120 | 23 | 15.0 | 13.0 | 16.5 | 112 | 35 |
| DTL-3-150 | 25 | 16.5 | 13.0 | 18.9 | 125 | 35 |
| DTL-3-185 | 28 | 18.5 | 13.0 | 22.0 | 133 | 42 |
| DTL-3-240 | 32 | 21.0 | 17.0 | 26.2 | 140 | 46 |
| DTL-3-300 | 34 | 23.5 | 17.0 | 26.0 | 155 | 50 |
| DTL-3-400 | 38 | 26.5 | 17.0 | 30.0 | 170 | 58 |

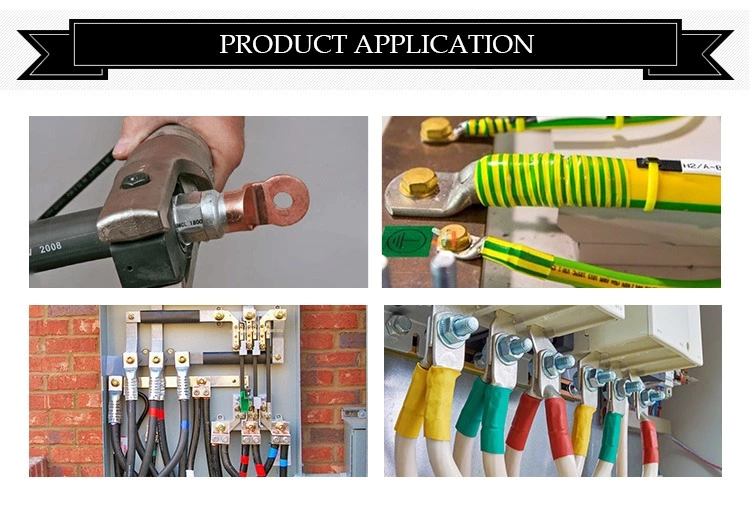

Installation Precautions
1. The screw must be tightened.
2. The cable and copper lug must be inserted in place and pressed with crimping tools.
